KindPack BaseView Barrier Pouch
Barrier pouch with a clear bottom gusset that shows real product at the base while the body stays fully opaque. Rebuilt into the KP-ECO-001 Mono-PE Single-Stream Stand-Up Doypack green parameter family: mono-material PE, single-stream film direction. Blank front panel, no brand on the pack. All specifications are Draft / Indicative / To Confirm - not a quote.
Specifications
| Product Type | Barrier Stand-Up Pouch with Clear Bottom Gusset | Structure | Barrier Stand-Up Pouch with Clear Bottom Gusset |
|---|---|---|---|
| Closure | Press-to-close zipper with an easy-tear notch | Material direction | Mono-material PE, single-stream film direction |
| Thickness | 115-145 micron total at the body; clear gusset film 70-100 micron | Standard sizes | 2 lb / 5 lb / 10 lb (907 g / 2.3 kg / 4.5 kg) |
| Finished dimensions | 2 lb / 5 lb / 10 lb (907 g / 2.3 kg / 4.5 kg). Finished size W x H + bottom gusset (mm): 2 lb approx. 200 x 310 + 70; 5 lb approx. 250 x 380 + 85; 10 lb approx. 290 x 440 + 100. | Flexographic surface print, up to 8 stations, water-based inks with a solvent-free lamination direction | |

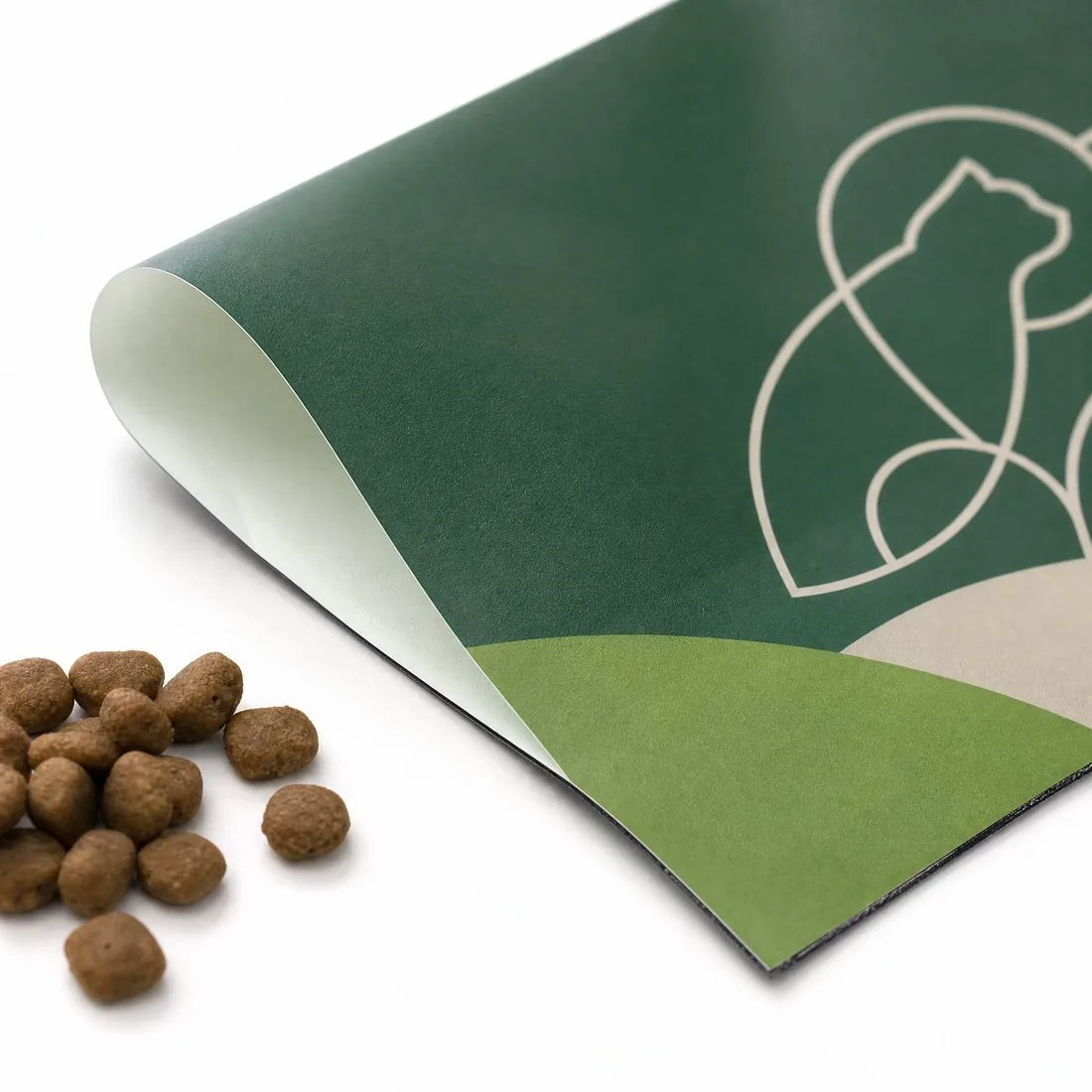

| Finish | Matte body with a low-gloss sealant band on the back panel; no foil, no metallic ink and no film lamination that would break the single-material direction | Window | None in the default single-material build. A PE window is technically possible but must be re-verified as part of the same material stream before it is offered |
| Handle | None in the default build. A die-cut top handle is available as an option on the 6 lb and 12 lb sizes and would add a reinforced patch - to be confirmed for material-stream compatibility | Valve or spout | None by default; no degassing valve in the standard kibble build. A mono-material degassing valve option for high-fat formulas (to be confirmed) |
| Environmental status | Claim pending - not verified | MOQ | 5,000 pcs / SKU (first run) |
| Lead time | Sample: 15-20 business days; mass production: 32-48 business days | Commercial terms | Ex-works unit price and shipping terms to be confirmed on quotation |
About this product

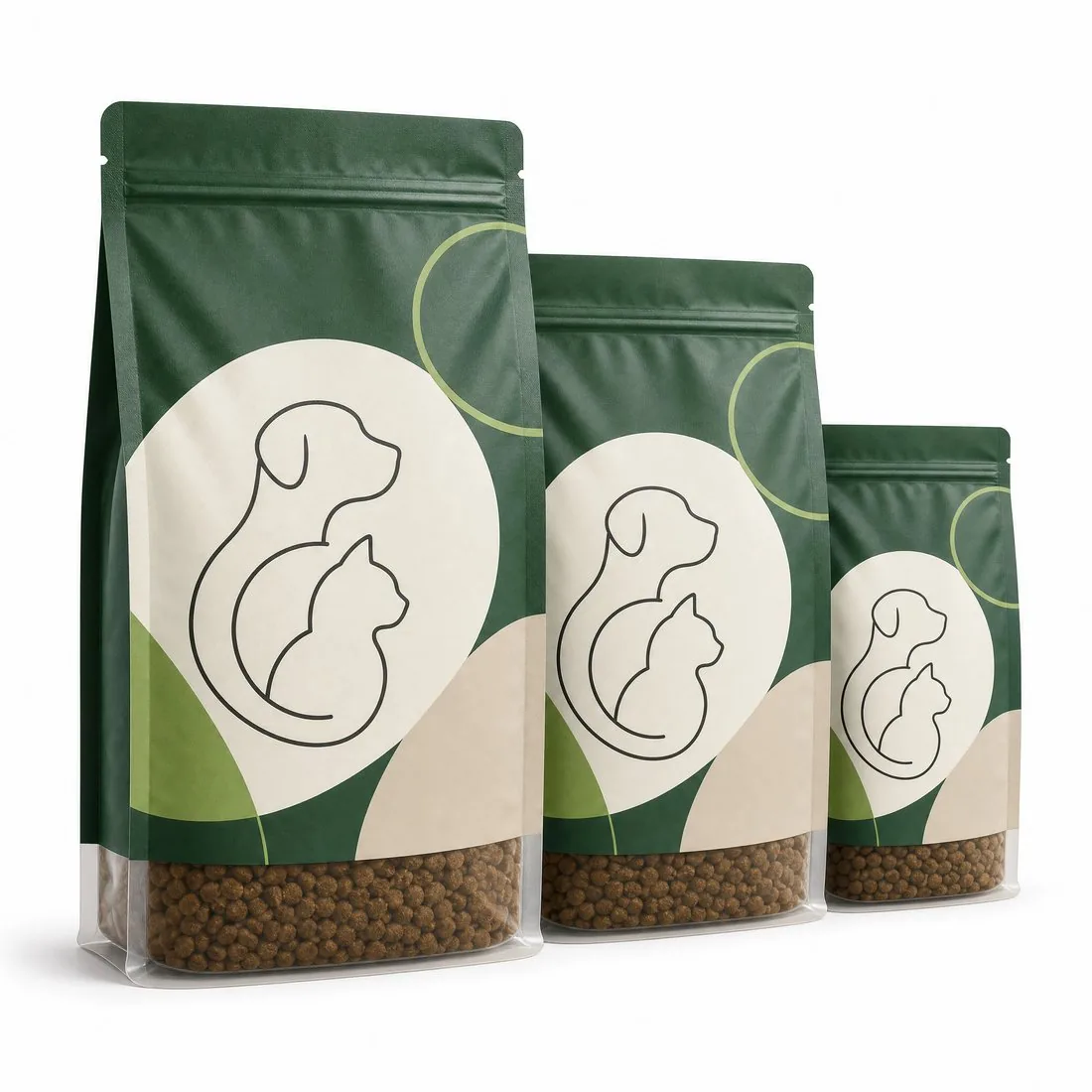

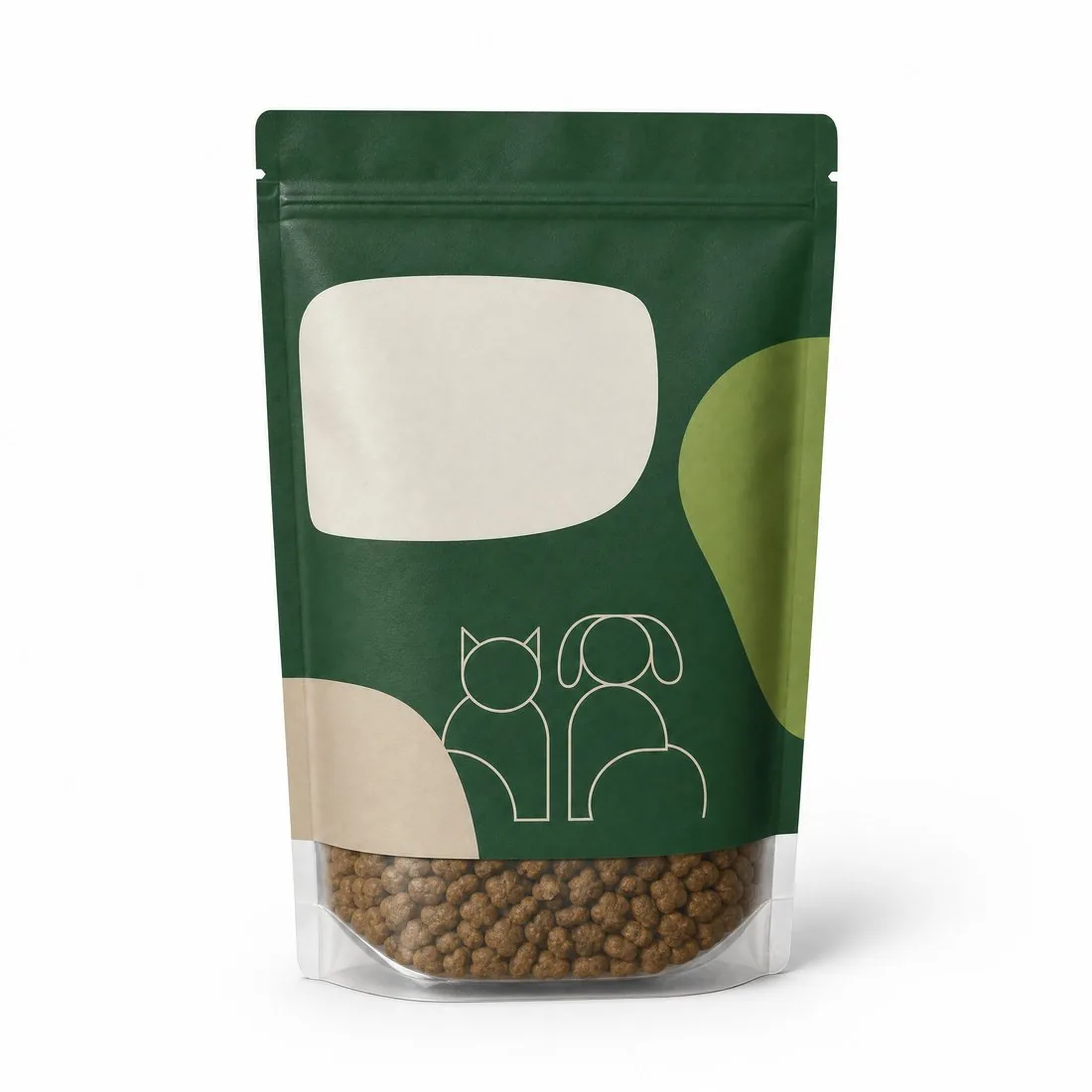

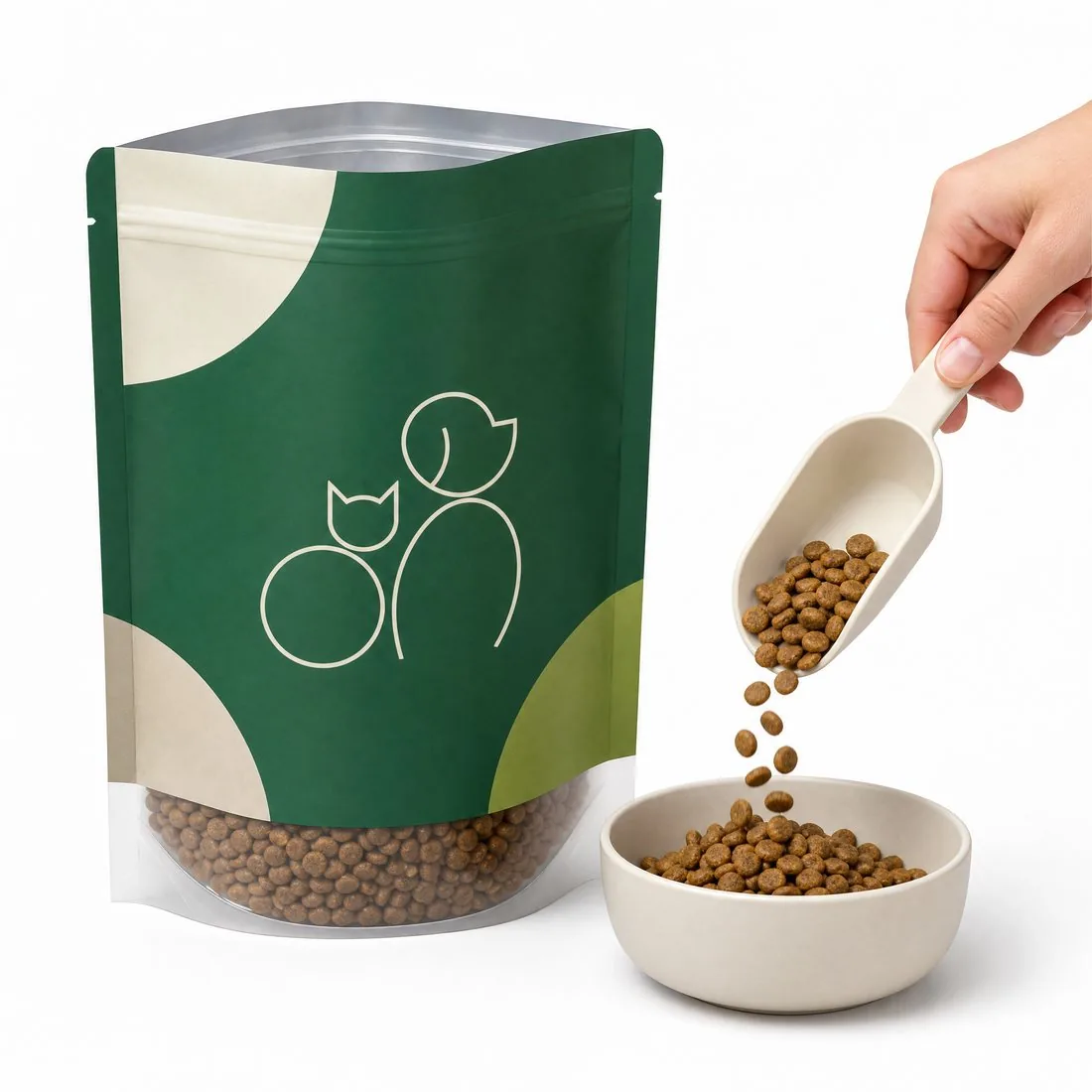

BaseView puts transparency where it costs nothing. The front panel stays fully opaque for barrier protection and brand storytelling, while the bottom gusset is produced in a high-clarity film so the actual kibble or mixer blend is visible where the pouch stands on shelf. It is a product-proof cue without sacrificing the light protection that fats need. A warm photographic portrait panel reinforces a personal, single-name brand story for regional and DTC makers. In the rebuilt 36-SKU green matrix this product is re-homed to parameter family KP-ECO-001 - Mono-PE Single-Stream Stand-Up Doypack - on the basis of structure-first match: stand-up pouch with a bottom gusset. The family design direction is: Mono-material PE only, with no mixed polymer layers, so the pack can stay in one film stream; water-based inks; solvent-free lamination; source reduction by downgauging; a PCR content direction; and a zipper from the same PE family so the closure does not contaminate the stream. The front panel stays blank and carries no brand of ours, so the buyer's own label can be applied. Nothing here is a verified environmental statement: CLAIM PENDING - NOT VERIFIED. No recyclability, recycled-content, mono-material or compostability claim is validated for this SKU today. Before any on-pack, listing or sales wording, the following must be documented and approved: (1) the film resin family declaration and the supplier recyclability statement; (2) a store drop-off eligibility assessment in the US and a provincial programme check in Canada; (3) evidence for any post-consumer recycled content figure (physical content or mass balance); (4) evidence for any material-reduction figure. Until then use only 'recyclable-direction material - verification pending'. Duties & taxes are not included in quoted prices.
For US and Canadian premium brands that want product visibility without giving up a full barrier body; the window sits where the pouch stands, so the product is visible on a shelf even when the front is fully printed. Re-homed into the KP-ECO-001 family, the North America positioning holds: Built for US and Canadian pet specialty, grocery and farm-store aisles where packaging EPR and recycled-content rules are tightening. Sized for a 4 in shelf facing and for parcel shipping, with the back panel reserved for bilingual EN / FR ingredients, feeding guidance and disposal wording that can be updated as soon as a claim is verified.
Key Features
✓ Clear bottom gusset shows real product at shelf level
✓ Opaque barrier body protects fats from light
✓ High-clarity gusset film keeps product color true

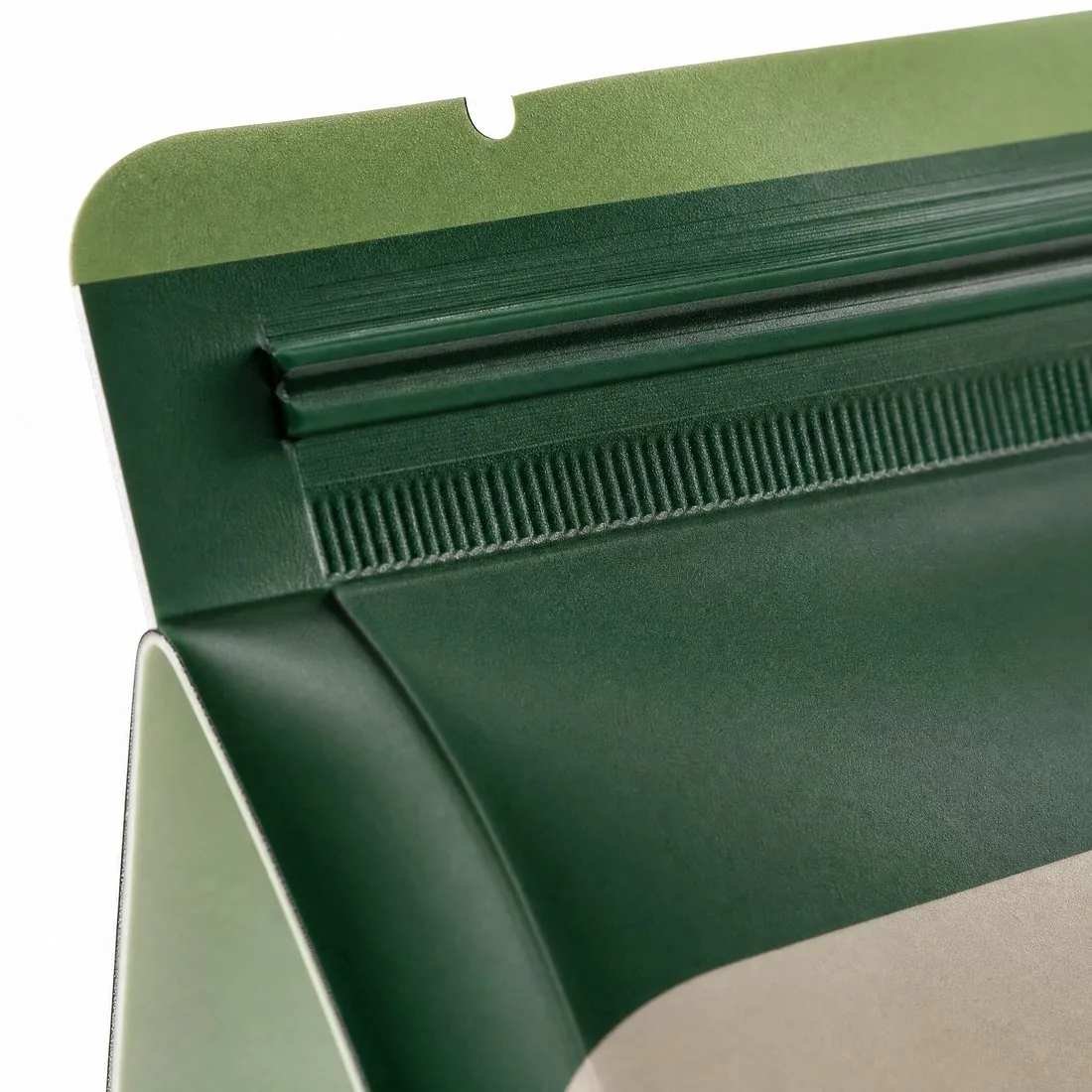

✓ Zipper and tear notch for everyday use
✓ Single-material PE construction direction so the body and closure stay in one film stream - claim pending verification
